Digital Mass Flow Meters and Regulators for Gases

The red-y compact series mass flow meters are characterized by powerful technology, intelligent functions and innovative design. The 2015 generation instrument offers a new level of ease of use: compact design with battery power, backlit touch display and extended alarm function.

Description

Technical Specifications red-y compact series

MEASURING RANGES
Full scale freely selectable Body Size ¼” from 0 … 25 mln/min to 0 … 60 ln/min (from 0 … 27 SCCM to 0 … 64 SLPM)
Body Size ½” from 0 … 60 ln/min to 0 … 450 ln/min (from 0 … 65 SLPM to 0 … 480 SLPM)
PERFORMANCE DATA
Media (real gas calibration) Air, O2*, N2*, He, Ar, CO2, H2, CH4, C3H8 (other gases and gas mixtures on request)
*O2 & N2 are calibrated with air
Accuracy (air & equivalents) Eco: ± 2.0% of full scale; ranges > 200 ln/min (200 SLPM) ± 3.0% of full scale
Special: ± 1.0% of full scale up to 50 ln/min (50 SLPM)
Turndown ratio Eco: 1 : 50
Special: 1 : 100
Response time Max. 300 msec (depending on filter settings)
Flow update by sensor 40 msec (battery mode 500 msec)
Display update 240 msec (battery mode 500 msec)
Repeatability ± 0.5% of full scale
Longterm stability < 1% of measured value / year
Power supply Meter & Regulator Standard AA battery (lifetime in months depending on operation) or
Micro-USB power supply (DIN 62684)
Option: External power +8…30 Vdc (power consumption max. 120mA)
Power supply Switch & All-in External power +8…30 Vdc (power consumption max. 300mA) or
Micro-USB power supply (DIN 62684)
Operation pressure 0.2 – 11 bara (3 – 160 psia)
Temperature (environment/gas) 0 – 50°C (32 – 122°F)
Body Materials Anodized aluminium, optional stainless steel electropolished
Seals FKM, optional EPDM (FDA)
Pressure sensitivity < 0.2% / bar (<0.014% / psi) of reading (typical N2)
Temperature sensitivity < 0.025% FS measuring range type per 1°C (<0.012% FS per 1°F)
Warm-up time < 1 sec. for full accuracy
INTEGRATION & INSTALLATION
Display Touch display (128×64 px) with automatic position adjustment (position sensor)
Backlighted only with external power supply (Micro-USB or 24 Vdc)
Process connection G¼” (BSPP* female) up to 60 ln/min (64 SLPM)
G½” (BSPP* female) up to 450 ln/min (480 SLPM)
*British Standard Pipe Parallel
Inlet section None required
Mounting orientation Any position (consult manufacturer above 5 bar or vertical mounting)
Connection cable For external power supply and alarm module: 2 m (6.5 ft) with loose ends
SAFETY
Test pressure 16 bara (240 psia)
Leak rate < 1 x 10-6 mbar l/s He
Environmental protection IP50  (conforms to NEMA 1)
EMC EN 61326-1

Touch Technology

The touch display offers intuitive navigation. The many variables that make the unit flexible are easily accessible. Automatic display adjustment thanks to position sensor

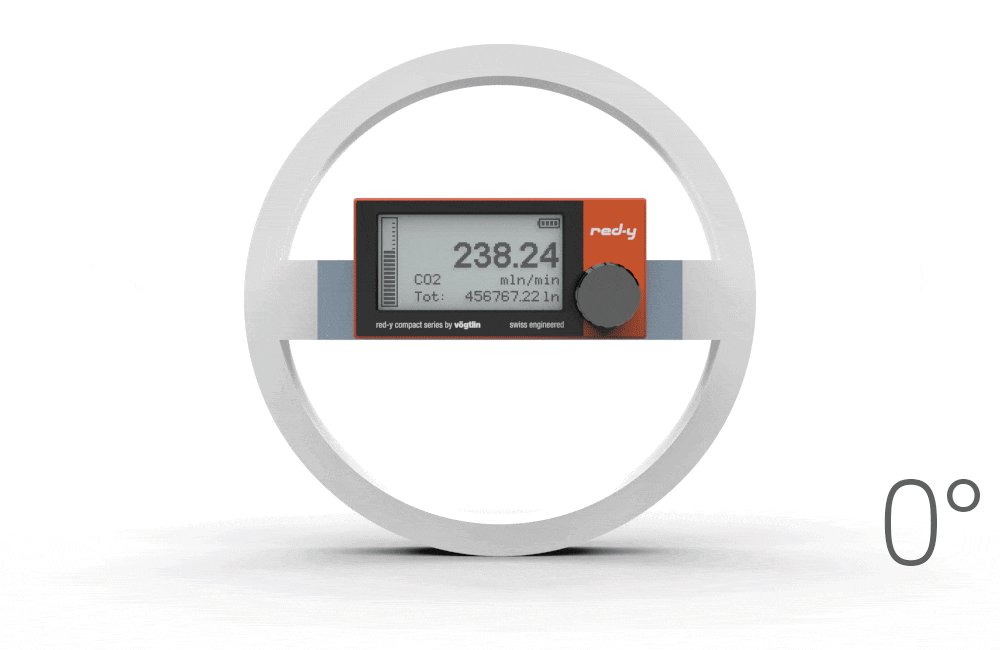

mass flow meters red-y compact series – Automatic display alignment



Independent Operation

The red-y compact mass flow meters are powered with a standard AA battery.
Optional 24 Vdc and Micro-USB power supply available



USB Enabled

The red-y compact measurements instruments can be powered with any common Micro-USB power supply (DIN62684). Device updates can be performed using the USB interface



High Accuracy & Dynamics

The devices offer high accuracy and a wide dynamic range:
Accuracy up to ± 1% of full scale
(depending on application/measuring range)
Turndown ratio 1 : 100



Extended Alarm Functions

The red-y compact 2 series provides 3 configurable alarms. The following triggers are available:
Low alarm, high alarm, window alarm and totalizer alarm
The alarms can be configured with different parameters:
Normally open, normally closed, hysteresis, auto/manual/remote reset, delay and alarm duration» Technical datasheet alarm module red-y compact 2 series



MEMS Sensor

The MEMS semiconductor chip is the centerpiece of the thermal mass flow meter.
Analog-digital conversion takes place in the sensor



Totalizer

In addition to the actual flow, the total consumption is displayed. Ideal for gas consumption measurements



1 Device – Multiple Gases

One red-y compact measuring device can be used for up to 3 different gases or gas mixtures



Wide Choice of Flow Units

Choose between a large number of standardized and normalized flow units of the Imperial, US customary and SI measuring systems (with user adjustable reference conditions).
The units are selectable from the integrated menu both for the actual flow and the totalized flow



Password Protection

To avoid unauthorised change of settings, the menu of the new red-y compact can be locked with a password



High-precision Valve

In the red-y compact regulator / all-in versions with manual valves, high-precision needle valves are used. These valves allow fine adjustment of the flow rate



Pressure & Temperature compensated

In contrast to variable area flow meters, the digital mass flow devices are insensitive to pressure and temperature changes



3-Year Warranty

High-quality components ensure long and trouble-free operation
(does not apply to calibration, options and accessories)
