FP Reamer

F.P. TOOL stands for Fine Precision TOOL. It was established in 1932 began with adjustable reamer. F.P. TOOL became one of the leading manufacture of reamers today. One of our series, “MIU series” which size range 0.300 to 12.100mm in 0.001mm increment. Tolerance is set between Omm and 0.001mm, suitable for Uitra’Precision Reaming.

Solid Carbide reamer Japanese brand FP TOOL for general works/suitable for deep hole cutting



Category:

Description

Carbide reamer　Carbide Reamers

Work Material / Use
Work Piece / Use		 Model
Product Code		 Product name
Lineup		 Size
Size		 Number of pages
Page		 Shape
Appearance
Diameter Increment
For aluminum alloy / aluminum casting processing
for Aluminum		 CA Carbide DLC Reamer A SeriesNEW 1.000-18.030 0.005mm jump 6-7 Carbide DLC Reamer A Series
For general work material
for General Works		 CG Carbide reamer G series
Carbide Reamer G Series		 0.20 to 0.29
0.300 to 12.100		 0.01mm jump
0.005mm jump		 8-9 Carbide Reamer G Series
For General Works / Precision Holes for general work materials / ultra-precision machining cm Carbide μ (mu) reamer
Carbide μ Reamer		 0.300-12.100 0.001mm jump 10-11 Carbide μ (mu) reamer
Mirror finish for
for Mirror finishing		 CB Carbide reamer B Series
Carbide Reamer B Series		 0.90-14.00 0.01mm jump 12-13 Carbide Reamer B Series
For Blind-Holes for complete blind holes CE Carbide reamer E series
Carbide Reamer E Series		 1.000-14.050 0.005mm jump 14-15 Carbide Reamer E Series
For Blind-Holes for complete blind holes CE-H With carbide reamer E-Series oil hole
Carbide Reamer E Series with Oil Hole		 2.950-10.050 0.005mm jump 16-17 Carbide reamer E series with oil hole
High hardness for / hard-to-cut materials for
For Hardened Steels /
For Difficult-To-Cut Materials		 CR Carbide reamer R series
Carbide Reamer R Series		 1.00-12.10 0.01mm jump 18-19 Carbide Reamer R Series
High hardness for / hard-to-cut materials for
For Hardened Steels /
For Difficult-To-Cut Materials		 CR-H With carbide reamer R Series oil hole
Carbide Reamer R Series with Oil Hole		 4.970-10.030 Limited size 20-21 Carbide Reamer R Series with Oil Hole
In general the work material for / high speed machining
For General Works /
High-Speed Use		 CP Carbide reamer F copy Platinum reamer
Carbide Reamer FP Platinum Reamer		 2.950-12.050 0.005mm jump 22-23 Carbide Reamer FP Platinum Reamer
In general the work material for / high-speed, deep hole machining
For General Works /
High-Speed Use And Deep Holes		 CH Carbide reamer H series
Carbide Reamer H Series		 1.00-16.00 0.01mm jump 24-25 Carbide Reamer H Series
For precision micro hole drilling
for Miniature precision Hole		 CD D’reamer
(Carbide Miniature Drill) D’reamer (Carbide Miniature Drill)		 0.05-0.30 0.01mm jump 26-27 D'reamer (Carbide Miniature Reamer Drill)

Cermet　Reamers

Work Material / Use
Work Piece / Use		 Model
Product Code		 Product name
Lineup		 Size
Size		 Number of pages
Page		 Shape
Appearance
Diameter Increment
For Staineless Steels for stainless steel processing SD Cermet
Reamer		 2.900-10.050 0.005mm jump 28-29 Cermet reamer

Haisurima　High Speed Steel Reamers

Work Material / Use
Work Piece / Use		 Model
Product Code		 Product name
Lineup		 Size
Size		 Number of pages
Page		 Shape
Appearance
Diameter Increment
For general work materials / high durability
for General Works / Long Tool Life		 HG FP
Gold Reamer Straight Flute		 1.000-14.100 0.005mm jump 30-31 FP Gold Reamer Straight Blade
For general work materials / high durability
for General Works / Long Tool Life		 HG-S FP
Gold Reamer Spiral Flute		 1.000-14.100 0.005mm jump 30-31 FP Gold Reamer Spiral Blade
For Aluminum and Copper Alloys for aluminum alloy processing HD DLC Reamer
DLC Reamer		 1.000-14.100 0.005mm jump 32-33 DLC reamer
For general work material
for General Works		 HR Handorima
Hand Reamer		 0.300-20.000 0.005mm jump 34-36 Hand reamer
In general the work material for / high-speed processing
for General Works / High-speed use		 HH High helical reamer
Hi-Helical Reamer		 1.50-16.49 0.01mm jump 37 High helical reamer
For Taper Pin Holes for taper pin hole drilling HP Taper pin reamer (1/50)
Taper Pin-Reamer (1/50)		 0.5-16.0 Limited size 38 Tapered pin reamer (1/50)

Manufactured to order Made to Order Items

Work Material / Use
Work Piece / Use		 Model
Product Code		 Product name
Lineup		 Size
Size		 Number of pages
Page		 Shape
Appearance
Diameter Increment
Carbide　Reamers Made-to-order items
Generally workpiece for / deep hole processing
for General Works /
Suitable for Deep Hole cutting		 CC Carbide reamer C series
Carbide Reamer C Series		 2.910-12.100 0.005mm jump 40 Carbide Reamer C Series
Haisurima　High Speed Steel Reamers Made-to- order items
For general work material
for General Works		 HB Short reamer
Short Reamer		 1.000-12.100 0.005mm jump 41 Short reamer

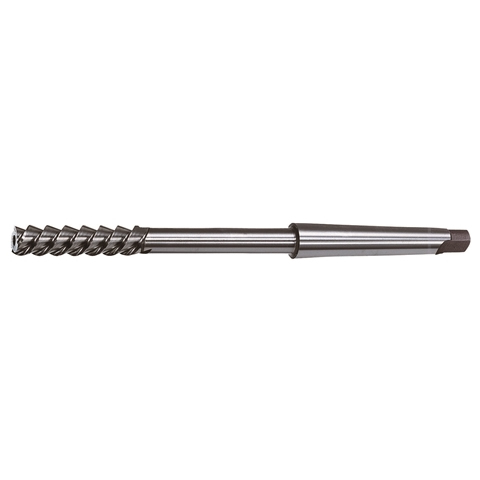

In general the work material for / high-speed processing
for General Works / High-speed use		 HH-MT MT
Hi-Helical Reamer		 3.00-30.00 0.01mm jump 42 MT High Helical Reamer

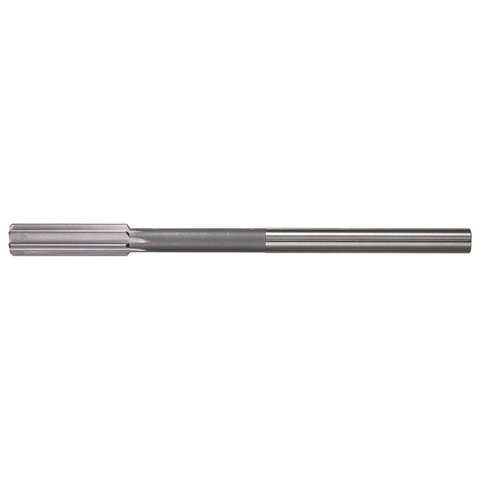

For general work material
for General Works		 HC Chucking reamer
Chucking Reamer		 1.00 to 20.00 43 Chucking reamer

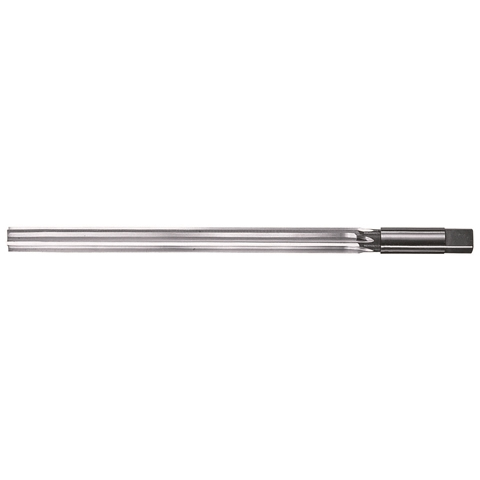

For general work material
for General Works		 HL Long hand reamer
Long Hand Reamer		 1.00 to 20.00 44-45 Long hand reamer
Adjustable reamer　Adjustable Reamers Made-to-order items
Blade diameter adjustable
Adjustable		 AR Adjustable reamer
Adjustable Reamer		 6.35-56.00 8A ~ M 46-47 Adjustable reamer
